MagicTouch AVF Designed with Nanolute technology is intended for stenotic lesions of dysfunctional arteriovenous fistula and graft.

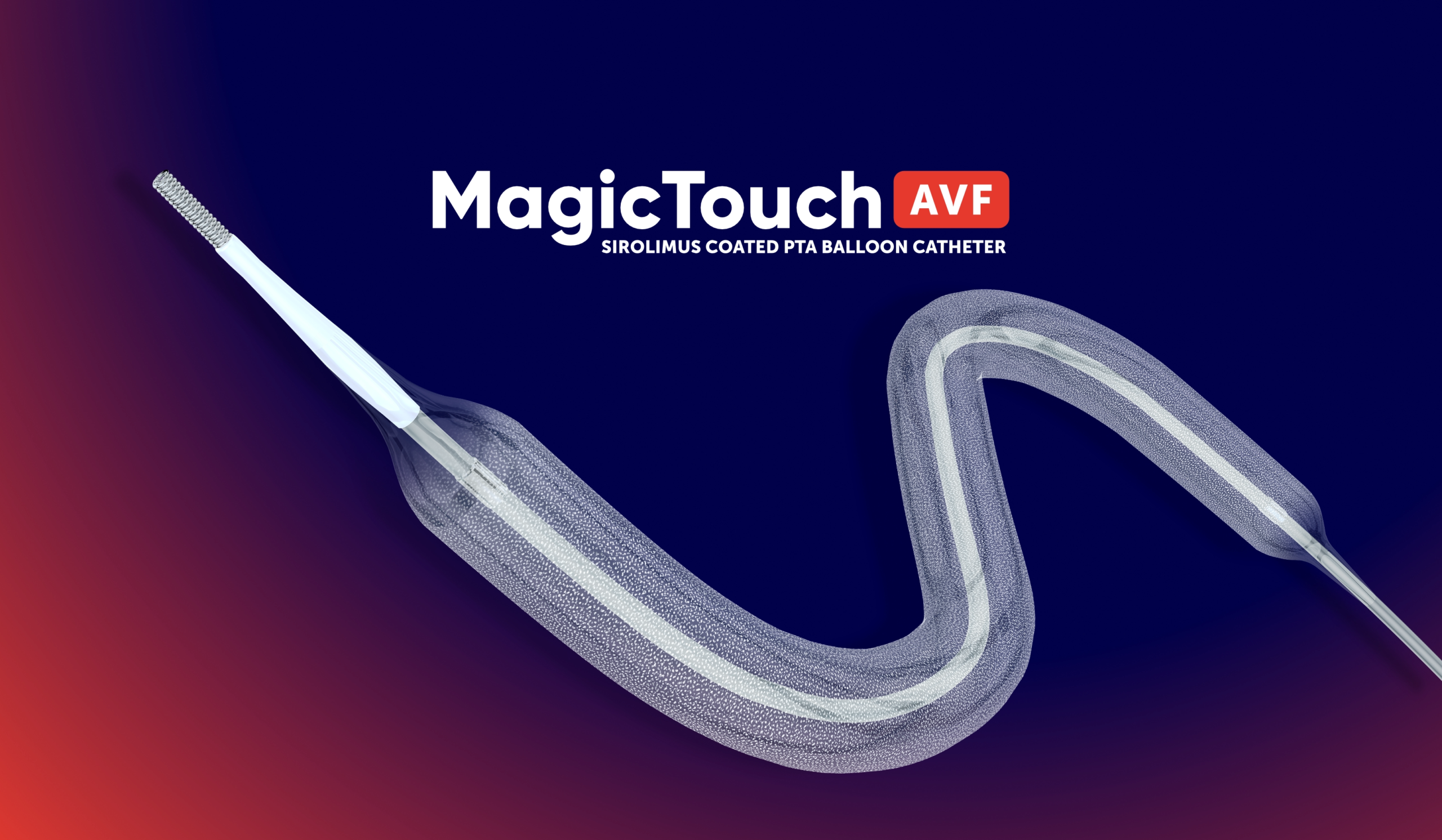

MagicTouch AVF (Sirolimus Drug-Coated Balloon) Indicated for the treatment of stenotic lesions of dysfunctional arteriovenous fistula and graft.
01

Touch to Treat with Hemodialysis Access

Designed for patients requiring dialysis access, specifically addressing stenotic lesions in AV grafts & dysfunctional fistulas by emphasizing on prevention of recurrent intervention & higher patency.

  • Only US FDA SCB with IDE approval for AVF indication
  • The most clinically studied SCB
  • CE Approved

02

Key Indications:
  • Stenotic Lesions in dialysis patients especially
  • Thrombosed Graft

03

Technology

Nanolute is an advanced drug delivery technology designed to enhance the efficiency of drug administration and retention, enabling sustained delivery from non-implantable devices. Nanolute is capable of delivering drugs effectively, regardless of whether their lipophilicity is poor or high.

Nanolute - Sirolimus Coated Balloon- MagicTouch PTA

Unique coating technology

Magic Touch is developed with Nanolute Technology which possesses unique circumferential coating technology that facilitates homogeneous drug distribution to target lesions

COATING
Circumferential Coating is
performed under Low Pressure inflation
leading to 100% surface area coating

REFOLDING
3 & 6 Folds

INFLATION
Homogeneous Drug Delivery
due to Circumferential Coating

04
Assuring Safety by delivering Sirolimus

TECHNOLOGY
An innovative proprietary Nanolute technology providing better bioavailability of SIROLIMUS

DRUG
Sirolimus: A drug with proven safety profile

COATING
Unique coating technology leads to 100% balloon surface coating

CARRIER
A biocompatible phospholipid drug carrier improving the adhesion property of Sirolimus

05

Documentation
[tech_detail]
[ballon]
Drug/Excipient
Drug Sirolimus
Drug Dose 1.27 μg/mm²
Drug Carrier Phospholipid
Balloon
Balloon Compliance Semi-Compliant
Sheath Compatibility 6F, 7F, 8F
No. of Folds 3 & 6
Size Available
Balloon Diameter(mm 3.00,4.00,5.00,6.00,7.00,8.00,9.00,10.00,12.00
Balloon Length(mm) 20,40,60,80,100,120,150,200
Catheter Shaft Length(cm) 45, 80, 90, 120, 130, 150
Delivery System
Guide wire Compatibility 0.035” OTW
Guiding Catheter Compatibility 7F to 9F

DRUG/EXCIPIENT

Drug
Drug Dose
Drug Carrier

Sirolimus
1.27µg/mm²
Phospholipid
BALLOON
Balloon Material
Catheter design
Polyamide
Rapid Exchange(RX) Design
