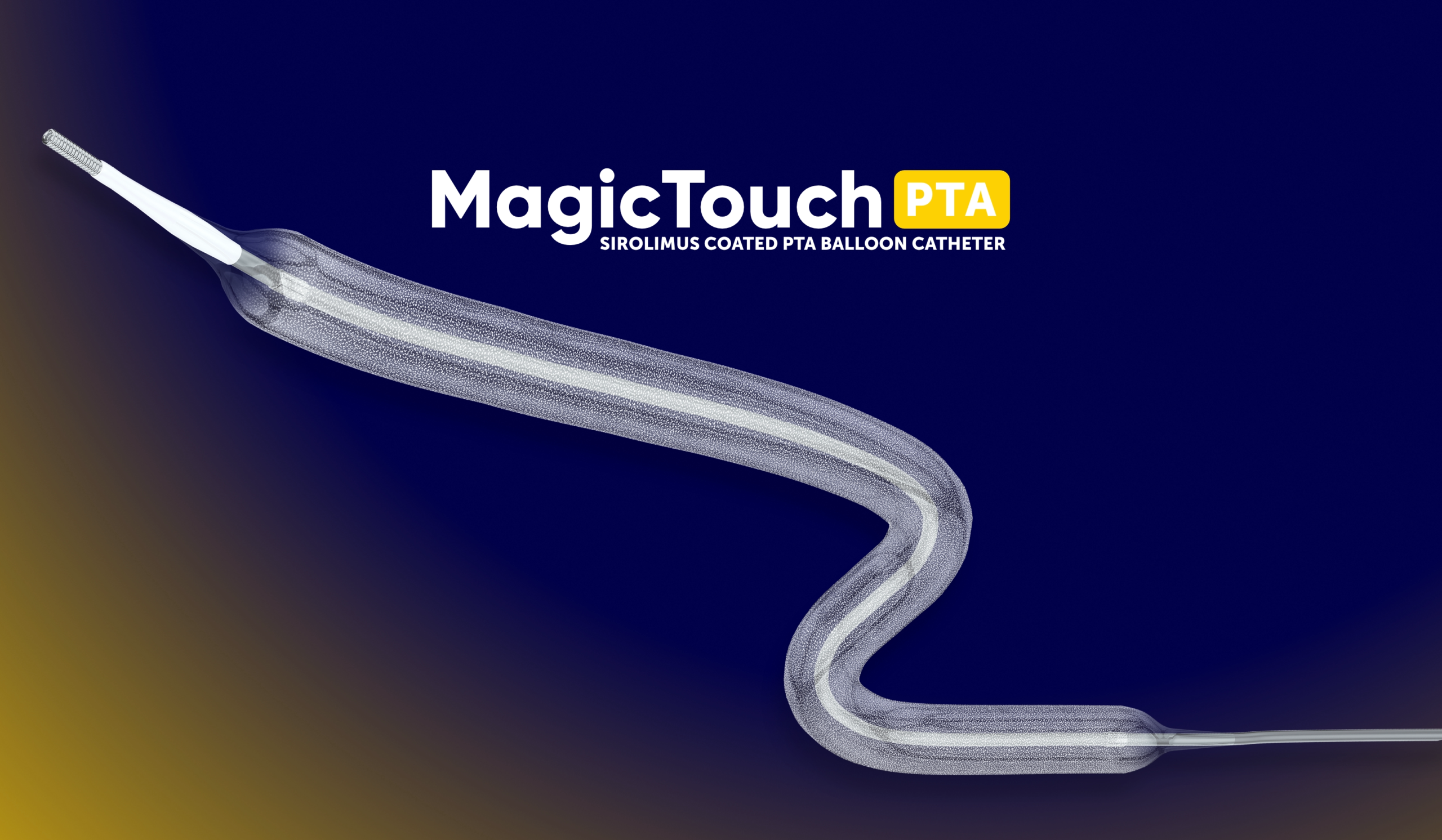

MagicTouch PTA designed with proprietary Nanolute Technology is intended for percutaneous transluminal angioplasty of de-novo, stenotic and in-stent restenotic lesions in Superficial femoral (SFA), popliteal, Below The Knee (BTK) and iliac arteries.

Touch to Thrive in Peripheral Health

Aimed at revascularizing SFA, BTK, Popliteal & Iliac arteries, focusing on prevention on re-narrowing in peripheral arterial disease, with credits to the safety and efficacy of Sirolimus Coating Tech, ensuring best-in-class patency.

US FDA IDE approved in BTK & SFA Indications
The most clinically studied SCB in PAD
CE Approved

Key Indications:

In Stent Restenosis
Stenotic Lesions
De-Novo Lesions
CLTI

Technology

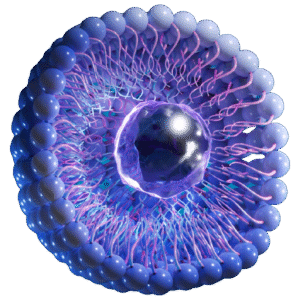

Nanolute is an advanced drug delivery technology designed to enhance the efficiency of drug administration and retention, enabling sustained delivery from non-implantable devices. Nanolute is capable of delivering drugs effectively, regardless of whether their lipophilicity is poor or high.

Unique coating technology

Magic Touch is developed with Nanolute Technology which possesses unique circumferential coating technology that facilitates homogeneous drug distribution to target lesions

COATING Circumferential Coating is performed under Low Pressure inflation leading to 100% surface area coating

REFOLDING
3 to 6 Folds

INFLATION Homogeneous Drug Delivery due to Circumferential Coating

Assuring Safety by delivering Sirolimus

TECHNOLOGY
An innovative proprietary Nanolute technology providing better bioavailability of SIROLIMUS

DRUG
Sirolimus: A drug with proven safety profile

COATING
Unique coating technology leads to 100% balloon surface coating

CARRIER
A biocompatible phospholipid drug carrier improving the adhesion property of Sirolimus

Documentation

Technical Specifications

Ordering Information

For Concept BV

Technical Specifications

Ordering Information

0.014″ OTW		Length (Shaft Length = 90 cm)
0.014″ OTW		20.00	40.00	60.00	80.00	100.00	120.00	150.00	200.00
Diameter	1.50	CPTW14025	NA	NA	NA	NA	NA	NA	NA
	2.00	NA	CPTW14026	CPTW14027	CPTW14028	CPTW14029	CPTW14030	CPTW14031	CPTW14032
	2.50	NA	CPTW14033	CPTW14034	CPTW14035	CPTW14036	CPTW14037	CPTW14038	CPTW14039
	3.00	NA	CPTW14040	CPTW14041	CPTW14042	CPTW14043	CPTW14044	CPTW14045	CPTW14046
	3.50	NA	CPTW14047	CPTW14048	CPTW14049	CPTW14050	CPTW14051	CPTW14052	CPTW14053
	4.00	NA	CPTW14054	CPTW14055	CPTW14056	CPTW14057	CPTW14058	CPTW14059	CPTW14060

0.014″ OTW		Length (Shaft Length = 120 cm)
0.014″ OTW		20.00	40.00	60.00	80.00	100.00	120.00	150.00	200.00
Diameter	1.50	CPT14150020	NA	NA	NA	NA	NA	NA	NA
	2.00	NA	CPT14200040	CPT14200060	CPT14200080	CPT14200100	CPT14200120	CPT14200150	CPT14200200
	2.50	NA	CPT14250040	CPT14250060	CPT14250080	CPT14250100	CPT14250120	CPT14250150	CPT14250200
	3.00	NA	CPT14300040	CPT14300060	CPT14300080	CPT14300100	CPT14300120	CPT14300150	CPT14300200
	3.50	NA	CPT14350040	CPT14350060	CPT14350080	CPT14350100	CPT14350120	CPT14350150	CPT14350200
	4.00	NA	CPT14400040	CPT14400060	CPT14400080	CPT14400100	CPT14400120	CPT14400150	CPT14400200

0.014″ OTW		Length (Shaft Length = 150 cm)
0.014″ OTW		20.00	40.00	60.00	80.00	100.00	120.00	150.00	200.00
Diameter	1.50	CPTW14061	NA	NA	NA	NA	NA	NA	NA
	2.00	NA	CPTW14062	CPTW14063	CPTW14064	CPTW14065	CPTW14066	CPTW14067	CPTW14068
	2.50	NA	CPTW14069	CPTW14070	CPTW14071	CPTW14072	CPTW14073	CPTW14074	CPTW14075
	3.00	NA	CPTW14076	CPTW14077	CPTW14078	CPTW14079	CPTW14080	CPTW14081	CPTW14082
	3.50	NA	CPTW14083	CPTW14084	CPTW14085	CPTW14086	CPTW14087	CPTW14088	CPTW14089
	4.00	NA	CPTW14090	CPTW14091	CPTW14092	CPTW14093	CPTW14094	CPTW14095	CPTW14096

0.018″ OTW		Length (Shaft Length = 90 cm)
0.018″ OTW		40.00	60.00	80.00	100.00	120.00	150.00	200.00
Diameter	2.00	CPTW18099	CPTW18100	CPTW18101	CPTW18102	CPTW18103	CPTW18104	CPTW18105
	2.50	CPTW18106	CPTW18107	CPTW18108	CPTW18109	CPTW18110	CPTW18111	CPTW18112
	3.00	CPTW18113	CPTW18114	CPTW18115	CPTW18116	CPTW18117	CPTW18118	CPTW18119
	3.50	CPTW18120	CPTW18121	CPTW18122	CPTW18123	CPTW18124	CPTW18125	CPTW18126
	4.00	CPTW18127	CPTW18128	CPTW18129	CPTW18130	CPTW18131	CPTW18132	CPTW18133
	5.00	CPTW18134	CPTW18135	CPTW18136	CPTW18137	CPTW18138	CPTW18139	CPTW18140
	5.50	CPTW18141	CPTW18142	CPTW18143	CPTW18144	CPTW18145	CPTW18146	CPTW18147
	6.00	CPTW18148	CPTW18149	CPTW18150	CPTW18151	CPTW18152	CPTW18153	CPTW18154
	7.00	CPTW18155	NA	NA	NA	NA	NA	NA

0.018″ OTW		Length (Shaft Length = 120 cm)
0.018″ OTW		40.00	60.00	80.00	100.00	120.00	150.00	200.00
Diameter	2.00	CPT18200040	CPT18200060	CPT18200080	CPT18200100	CPT18200120	CPT18200150	CPT18200200
	2.50	CPT18250040	CPT18250060	CPT18250080	CPT18250100	CPT18250120	CPT18250150	CPT18250200
	3.00	CPT18300040	CPT18300060	CPT18300080	CPT18300100	CPT18300120	CPT18300150	CPT18300200
	3.50	CPT18350040	CPT18350060	CPT18350080	CPT18350100	CPT18350120	CPT18350150	CPT18350200
	4.00	CPT18400040	CPT18400060	CPT18400080	CPT18400100	CPT18400120	CPT18400150	CPT18400200
	5.00	CPT18500040	CPT18500060	CPT18500080	CPT18500100	CPT18500120	CPT18500150	CPT18500200
	5.50	CPT18550040	CPT18550060	CPT18550080	CPT18550100	CPT18550120	CPT18550150	CPT18550200
	6.00	CPT18600040	CPT18600060	CPT18600080	CPT18600100	CPT18600120	CPT18600150	CPT18600200
	7.00	CPT18700040	NA	NA	NA	NA	NA	NA

0.018″ OTW		Length (Shaft Length = 150 cm)
0.018″ OTW		40.00	60.00	80.00	100.00	120.00	150.00	200.00
Diameter	2.00	CPTW18156	CPTW18157	CPTW18158	CPTW18159	CPTW18160	CPTW18161	CPTW18162
	2.50	CPTW18163	CPTW18164	CPTW18165	CPTW18166	CPTW18167	CPTW18168	CPTW18169
	3.00	CPTW18170	CPTW18171	CPTW18172	CPTW18173	CPTW18174	CPTW18175	CPTW18176
	3.50	CPTW18177	CPTW18178	CPTW18179	CPTW18180	CPTW18181	CPTW18182	CPTW18183
	4.00	CPTW18184	CPTW18185	CPTW18186	CPTW18187	CPTW18188	CPTW18189	CPTW18190
	5.00	CPTW18191	CPTW18192	CPTW18193	CPTW18194	CPTW18195	CPTW18196	CPTW18197
	5.50	CPTW18198	CPTW18199	CPTW18200	CPTW18201	CPTW18202	CPTW18203	CPTW18204
	6.00	CPTW18205	CPTW18206	CPTW18207	CPTW18208	CPTW18209	CPTW18210	CPTW18211
	7.00	CPTW18212	NA	NA	NA	NA	NA	NA

0.035″ OTW		Length (Shaft Length = 80 cm = 800 mm)
0.035″ OTW		20.00	40.00	60.00	80.00	100.00	120.00	150.00	200.00
Diameter	3.00	CPTW35001	CPTW35002	CPTW35003	CPTW35004	NA	NA	NA	NA
	4.00	CPTW35005	CPTW35006	CPTW35007	CPTW35008	CPTW35009	CPTW35010	CPTW35011	CPTW35012
	5.00	CPTW35013	CPTW35014	CPTW35015	CPTW35016	CPTW35017	CPTW35018	CPTW35019	CPTW35020
	6.00	CPTW35021	CPTW35022	CPTW35023	CPTW35024	CPTW35025	CPTW35026	CPTW35027	CPTW35028
	7.00	CPTW35029	CPTW35030	CPTW35031	CPTW35032	CPTW35033	CPTW35034	CPTW35035	CPTW35036
	8.00	CPTW35037	CPTW35038	CPTW35039	CPTW35040	CPTW35041	CPTW35042	CPTW35043	CPTW35044
	9.00	CPTW35045	CPTW35046	CPTW35047	CPTW35048	NA	NA	NA	NA
	10.00	CPTW35049	CPTW35050	CPTW35051	CPTW35052	NA	NA	NA	NA
	12.00	CPTW35053	CPTW35054	CPTW35055	CPTW35056	NA	NA	NA	NA

0.035″ OTW		Length (Shaft Length = 90 cm = 900 mm)
0.035″ OTW		20.00	40.00	60.00	80.00	100.00	120.00	150.00	200.00
Diameter	3.00	CPTW35057	CPTW35058	CPTW35059	CPTW35060	NA	NA	NA	NA
	4.00	CPTW35061	CPTW35062	CPTW35063	CPTW35064	CPTW35065	CPTW35066	CPTW35067	CPTW35068
	5.00	CPTW35069	CPTW35070	CPTW35071	CPTW35072	CPTW35073	CPTW35074	CPTW35075	CPTW35076
	6.00	CPTW35077	CPTW35078	CPTW35079	CPTW35080	CPTW35081	CPTW35082	CPTW35083	CPTW35084
	7.00	CPTW35085	CPTW35086	CPTW35087	CPTW35088	CPTW35089	CPTW35090	CPTW35091	CPTW35092
	8.00	CPTW35093	CPTW35094	CPTW35095	CPTW35096	CPTW35097	CPTW35098	CPTW35099	CPTW35100
	9.00	CPTW35101	CPTW35102	CPTW35103	CPTW35104	NA	NA	NA	NA
	10.00	CPTW35105	CPTW35106	CPTW35107	CPTW35108	NA	NA	NA	NA
	12.00	CPTW35109	CPTW35110	CPTW35111	CPTW35112	NA	NA	NA	NA

0.035″ OTW		Length (Shaft Length = 130 cm = 1300 mm)
0.035″ OTW		20.00	40.00	60.00	80.00	100.00	120.00	150.00	200.00
Diameter	3.00	CPTW35153	CPTW35154	CPTW35155	CPTW35156	NA	NA	NA	NA
	4.00	CPTW35157	CPTW35158	CPTW35159	CPTW35160	CPTW35161	CPTW35162	CPTW35163	CPTW35164
	5.00	CPTW35165	CPTW35166	CPTW35167	CPTW35168	CPTW35169	CPTW35170	CPTW35171	CPTW35172
	6.00	CPTW35173	CPTW35174	CPTW35175	CPTW35176	CPTW35177	CPTW35178	CPTW35179	CPTW35180
	7.00	CPTW35181	CPTW35182	CPTW35183	CPTW35184	CPTW35185	CPTW35186	CPTW35187	CPTW35188
	8.00	CPTW35189	CPTW35190	CPTW35191	CPTW35192	CPTW35193	CPTW35194	CPTW35195	CPTW35196
	9.00	CPTW35197	CPTW35198	CPTW35199	CPTW35200	NA	NA	NA	NA
	10.00	CPTW35201	CPTW35202	CPTW35203	CPTW35204	NA	NA	NA	NA
	12.00	CPTW35205	CPTW35206	CPTW35207	CPTW35208	NA	NA	NA	NA

0.035″ OTW		Length (Shaft Length = 150 cm = 1500 mm)
0.035″ OTW		20.00	40.00	60.00	80.00	100.00	120.00	150.00	200.00
Diameter	3.00	CPTW35209	CPTW35210	CPTW35211	CPTW35212	NA	NA	NA	NA
	4.00	CPTW35213	CPTW35214	CPTW35215	CPTW35216	CPTW35217	CPTW35218	CPTW35219	CPTW35220
	5.00	CPTW35221	CPTW35222	CPTW35223	CPTW35224	CPTW35225	CPTW35226	CPTW35227	CPTW35228
	6.00	CPTW35229	CPTW35230	CPTW35231	CPTW35232	CPTW35233	CPTW35234	CPTW35235	CPTW35236
	7.00	CPTW35237	CPTW35238	CPTW35239	CPTW35240	CPTW35241	CPTW35242	CPTW35243	CPTW35244
	8.00	CPTW35245	CPTW35246	CPTW35247	CPTW35248	CPTW35249	CPTW35250	CPTW35251	CPTW35252
	9.00	CPTW35253	CPTW35254	CPTW35255	CPTW35256	NA	NA	NA	NA
	10.00	CPTW35257	CPTW35258	CPTW35259	CPTW35260	NA	NA	NA	NA
	12.00	CPTW35261	CPTW35262	CPTW35263	CPTW35264	NA	NA	NA	NA

0.035″ OTW		Length (Shaft Length = 45 cm = 450 mm)
0.035″ OTW		20.00	40.00	60.00	80.00	100.00	120.00	150.00	200.00
Diameter	3.00	CPTW35113	CPTW35114	CPTW35115	CPTW35116	NA	NA	NA	NA
	4.00	CPTW35117	CPTW35118	CPTW35119	CPTW35120	CPTW35121	CPTW35122	NA	NA
	5.00	CPTW35123	CPTW35124	CPTW35125	CPTW35126	CPTW35127	CPTW35128	NA	NA
	6.00	CPTW35129	CPTW35130	CPTW35131	CPTW35132	CPTW35133	CPTW35134	NA	NA
	7.00	CPTW35135	CPTW35136	CPTW35137	CPTW35138	CPTW35139	NA	NA	NA
	8.00	CPTW35140	CPTW35141	CPTW35142	CPTW35143	CPTW35144	NA	NA	NA
	9.00	CPTW35145	CPTW35146	CPTW35147	CPTW35148	NA	NA	NA	NA
	10.00	CPTW35149	CPTW35150	CPTW35151	CPTW35152	NA	NA	NA	NA

For Concept BV

Get in touch
to know more

MAIL US
info@conceptmedical.com

BOOK A CALL
with our sales rep

Drug	Sirolimus
Drug Dose	1.27 μg/mm²
Drug Carrier	Phospholipid

Delivery System	Over The wire
Balloon Compliance	Semi-Compliant
Sheath Compatibility	5F-8F
Guiding Cather Compatibility	6F-9F
No. of Folds	3 & 6

0.014’’	1.50, 2.00, 2.50, 3.00, 3.50, 4.00
0.018’’	2.00, 2.50, 3.00, 3.50, 4.00, 5.00, 5.50, 6.00, 7.00
0.035’’	3.00, 4.00, 5.00, 6.00, 7.00, 8.00, 9.00, 10.00, 12.00

0.014’’	20, 40, 60, 80, 100, 120, 150, 200
0.018’’	40, 60, 80, 100, 120, 150, 200
0.035’’	20, 40, 60, 80, 100, 120, 150, 200

0.014’’	90, 120, 150
0.018’’	90, 120, 150
0.035’’	45, 80, 90, 130, 150

Drug/Excipient

Balloon

Balloon Diameter(mm)

Balloon Length (mm)

Catheter Shaft Length (cm)
